Connectivity Options
4G · Wi-FiAvailable in high-reliability 4G LTE and Wi-Fi variants for seamless remote data transmission, even in industrial environments with weak signal coverage.
Smart Energy Management · Made in Malaysia
Smart Energy
Management. Simplified
Billing. Complete Control.
Monitor, manage, and automate your property's power consumption with industrial-grade 4G / Wi-Fi smart breakers and an integrated billing ecosystem by ID IoT Engineering Solutions.
Up to 80A Support
Built-in Payment Gateway
4G & Wi-Fi Ready
80A
Max rated current
RM 10/mo
Managed data SIM
≤ 0.1s
Trip response time
1Φ / 3Φ
Phase support
A SaaS platform built for multi-tenant energy operators.

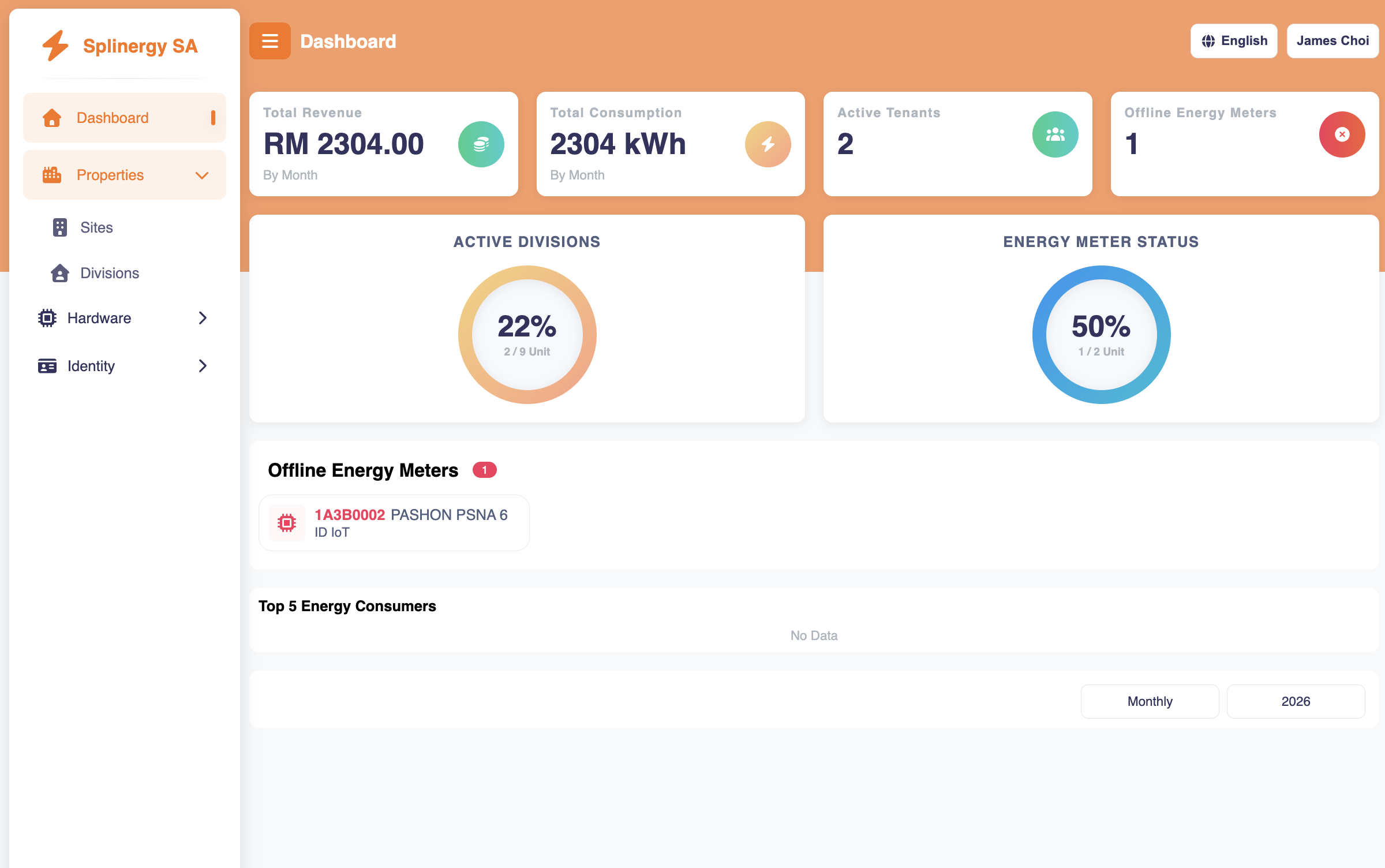

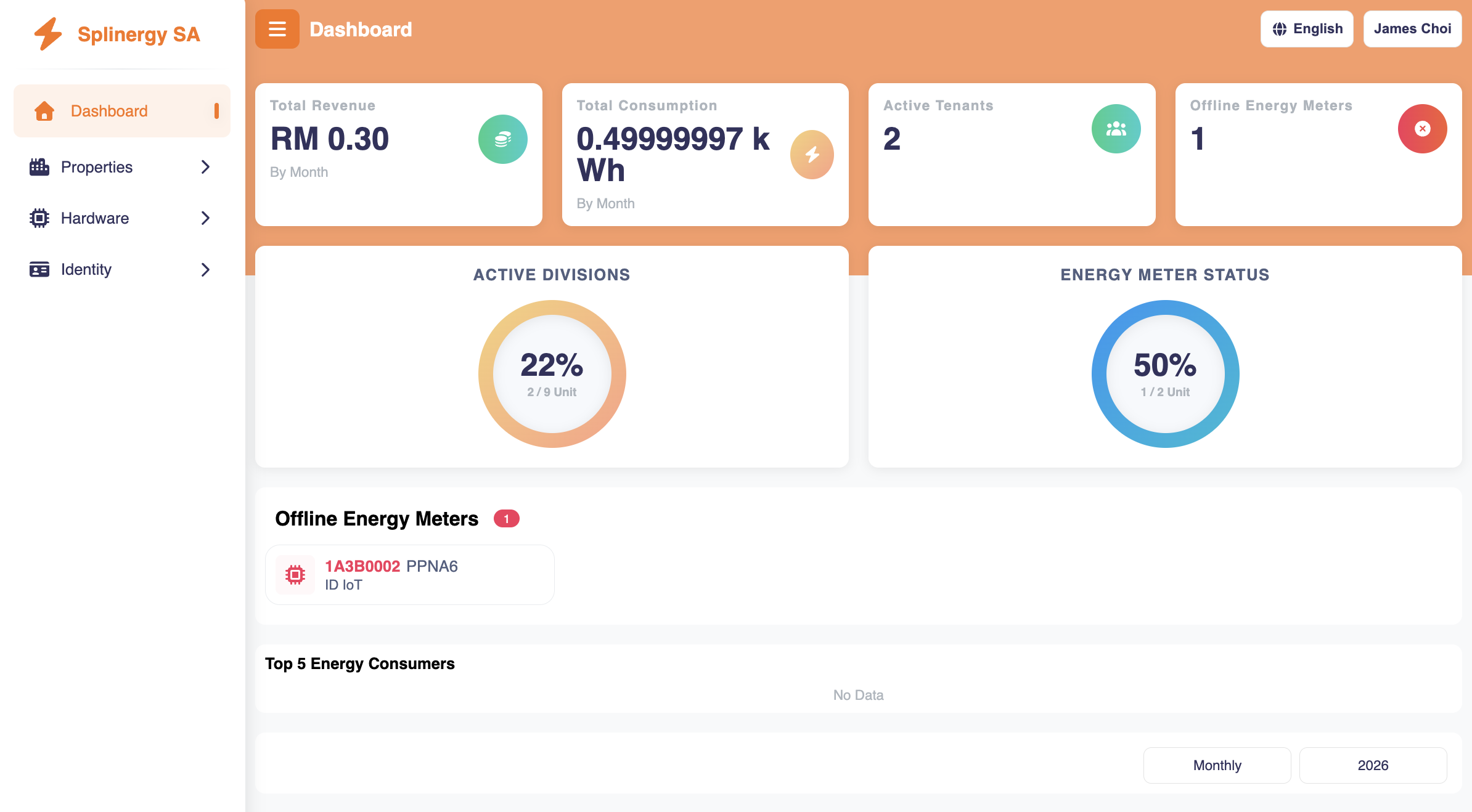

The Splinergy SA web dashboard turns raw breaker telemetry into automated revenue, real-time control, and decision-grade analytics — without a spreadsheet in sight.
Web admin · Mobile tenant top-up
Visa · Mastercard
FPX
TNG · GrabPay · ShopeePay
WeChat Pay · Alipay
Tenants · Divisions · Sites · Status
Owner Portal
Tenant Portal
Role-based
Audit log
Voltage · Live
241 V · Optimal
Uptime · 24h
100% online
Live telemetry · Consumption · Uptime
Voltage
Current
Power factor
kWh
Every Malaysian wallet, one checkout.
Tenants pay in whatever they already have on their phone. You get the ringgit in the bank and the breaker stays on automatically.
Cards 3
Online Banking 2
E-Wallets 5
PCI-DSS compliant gateway
Auto top-up & recurring billing
Need a custom gateway?

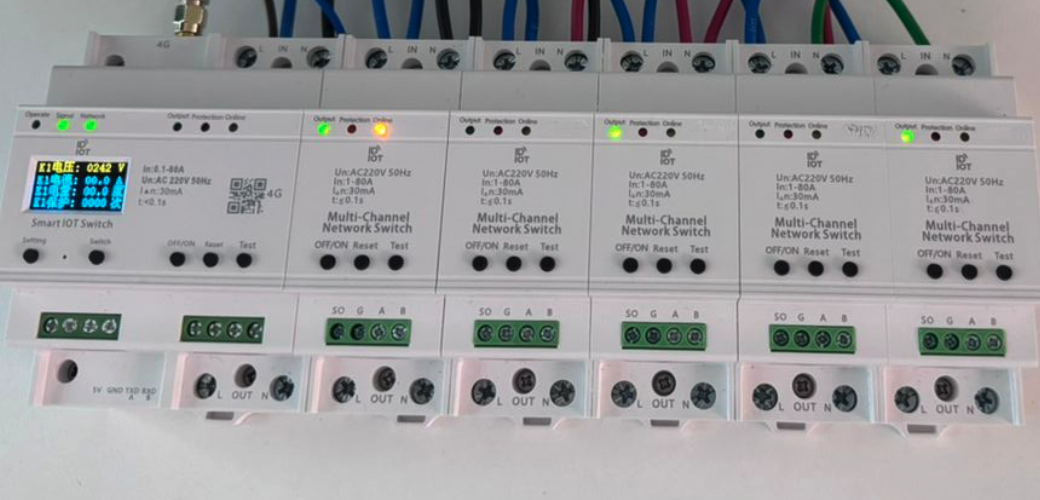

Industrial DIN-rail breakers, remotely orchestrated.
Each Splinergy IoT smart breaker is a complete edge meter: real-time electrical telemetry, cloud-configurable safety thresholds, and managed cellular connectivity out of the box.
Live unit · Model PSNA-6
1
2
3
4
6-Channel Network Switch
All channels online
AC 220V · 50Hz · ≤ 0.1s
1
OLED TelemetryLive display
2
4G LTE AntennaCellular uplink
3
Status LED BankOnline · Protection
4
Field TerminalsL · IN · OUT · N
Managed Data SIM
from RM 10/moPlug-and-play cellular connectivity with optional managed data SIM packages — no IT department, no carrier contracts, no provisioning headaches.

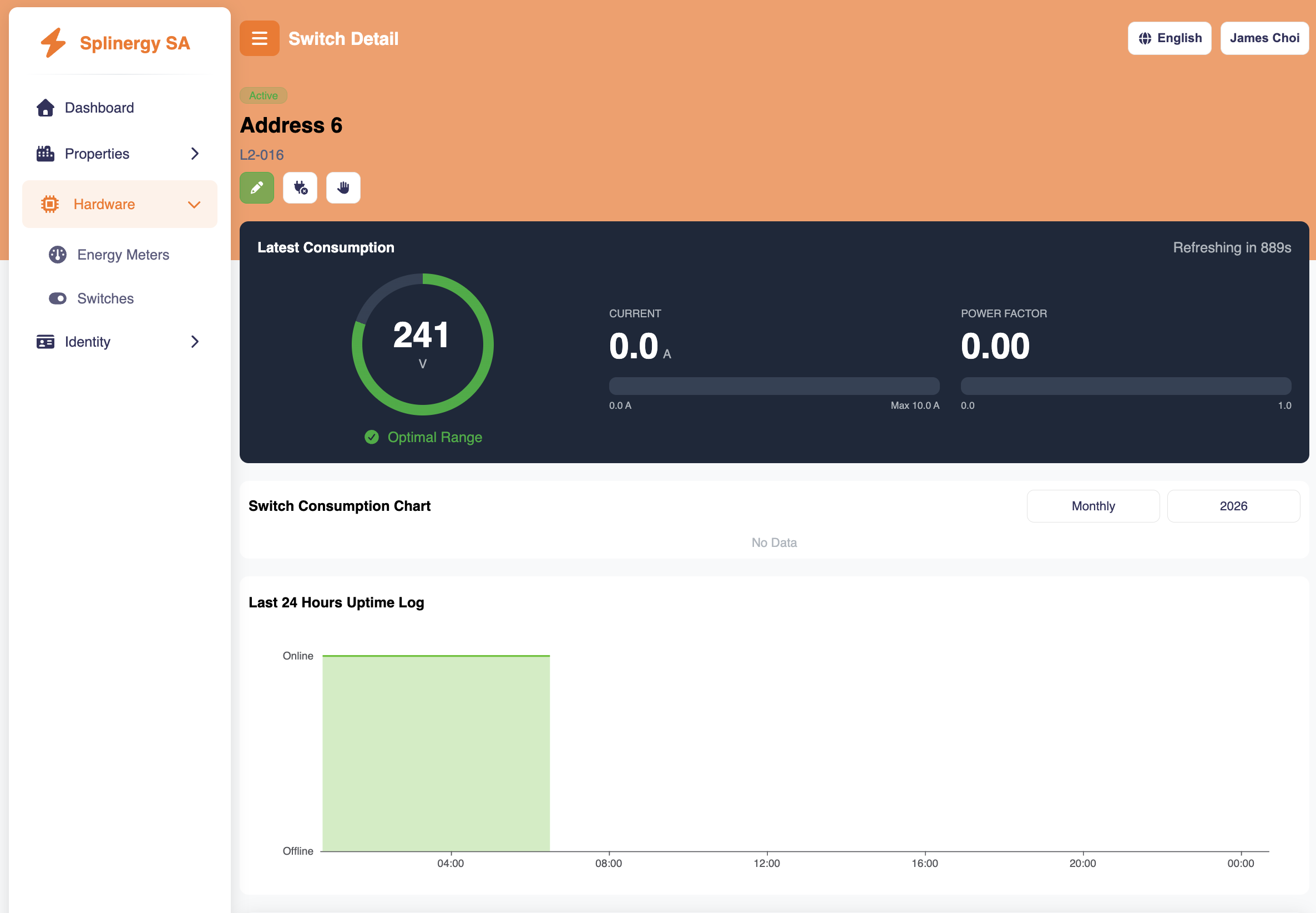

Real-Time Telemetry
LiveConstantly monitors and records voltage, current, active power and cumulative energy consumption per channel.
Voltage
V (RMS)
Current
A (RMS)
Energy
kWh
Smart Parameter Controls
1Φ · 3ΦDynamically configure safety thresholds directly from the software cloud interface — remote & local.
Rated Current
1–80 A
Leakage
10–100 mA
Voltage Trip
U/V · O/V
Four hard outcomes, measurable from day one.
B.01
Stop Revenue Leakage
Eliminate unpaid utility bills with automated payment enforcement and prepaid cut-off logic.
B.02
Remote Circuit Control
Instantly cut off or restore power to specific divisions or units remotely based on usage or lease terms.
B.03
Industrial-Grade Safety
Prevent equipment damage and fire hazards with real-time over-voltage, under-voltage and leakage alerts.
B.04
Effortless Scalability
Scale from a single sub-meter to an entire multi-tenant industrial park or commercial building.
Four industries. One platform.
From monetizing dumb EV chargers to enforcing solar PPAs, Splinergy turns any electrical circuit into a payment-aware, software-defined asset — purpose-built for Malaysian property and industry.
UC.01 · EV Charging Infrastructure
Monetize any AC charger. Skip the OCPP tax.
Turn basic "dummy" AC chargers into revenue-generating stations and solve high-density condo EV disputes — all from one breaker.
Smart "Gatekeeper" for Dumb Chargers
Power line stays off until a driver scans a QR, pays via e-wallet, and the circuit closes for exactly the paid duration or kWh target.
Multi-Tenant Condo EV Allocation
Allocate energy straight to a resident's bay. Pre-paid limits, auto cut-off at zero balance, and configurable 10–30 mA leakage protection shields the building's main switchboard from ground faults.
UC.02 · Solar PV & PPA Operators
Enforce the PPA. Protect the battery bank.
Built for solar developers running commercial Power Purchase Agreements and hybrid systems with critical battery storage.
Solar Leasing & Commercial PPA Automation
Install at the inverter output: measure exact solar consumption, automate monthly invoicing, collect digital payments, and remotely isolate the generation circuit if a customer defaults.
NEM Validation & Smart Load Shedding
Benchmark solar production against grid draw side-by-side. Auto-shed non-essential HVAC and cooling loads during low-sunlight intervals to preserve costly battery banks for critical lines.
UC.03 · Manufacturing & Factory Ops
Cost-centres on every machine. Surge firewall on every line.
Stop guessing which department burns the most electricity, and stop watching expensive machinery die from a single voltage spike.
Departmental Cost-Center Tracking
Break down messy energy overheads per machinery line, manufacturing division or warehouse sector — so heavy-load optimization becomes a data exercise, not a guessing game.
Critical Asset Surge Protection
Acts as an intelligent firewall — trips automatically on severe over-voltage (> 280V) or under-voltage (< 150V) before sensitive industrial machinery takes catastrophic damage.
UC.04 · Commercial Real Estate
Prepaid electricity that collects itself.
Perfect for commercial shop lots, co-working facilities, hostels and subdivided office rentals — eliminate the hassle of chasing unpaid utility debts.
Automated Tenant Electricity Control
Shift tenants to a pre-paid energy model that automatically disconnects lines the moment pre-paid usage ends or invoices go overdue — no late-payment chasing, no manual reconnects.
Self-Serve Tenant Top-Up
Tenants top up balance themselves via Visa, Mastercard, FPX, TNG, ShopeePay, GrabPay, WeChat Pay or Alipay — property managers just watch the dashboard.
Ready to optimize your energy management?
Get in touch with our Lead Technologist for a tailored technical consultation and live demo of the Splinergy hardware + SaaS ecosystem.
